We deploy a heavy vibratory probe that penetrates loose granular soils to depths up to 30 feet in Modesto. The probe vibrates horizontally, forcing sand grains into a denser configuration. A backfill hopper feeds gravel or coarse sand into the cavity as the probe withdraws. This process creates a compacted stone column that reinforces the ground. For sites along the Tuolumne River floodplain, where loose alluvial sands are common, vibrocompaction design in Modesto is often the most cost-effective way to reduce settlement risk before building. The rig itself is self-contained, running on tracks to navigate tight residential lots.
Loose alluvial sands under Modesto can settle up to 30% without densification – vibrocompaction reduces that risk to under 5%.
Methodology and scope
Modesto grew rapidly during the post-war agricultural boom, with many subdivisions built directly on river-deposited sands. Those loose strata are now a geotechnical liability. Our vibrocompaction design in Modesto addresses this legacy by densifying the full column of sand from the surface down to the bearing layer. We follow a phased approach: initial site reconnaissance, then a test grid to calibrate probe spacing and vibration frequency. Each compaction point is logged with depth and energy data. Before mobilizing the rig, we often cross-check soil behavior with a presurometer test to measure lateral stress changes, and we review soil classification to confirm non-plastic fines content stays below 15%. For sites with shallow groundwater, a permeability field test helps predict drainage behavior during compaction.

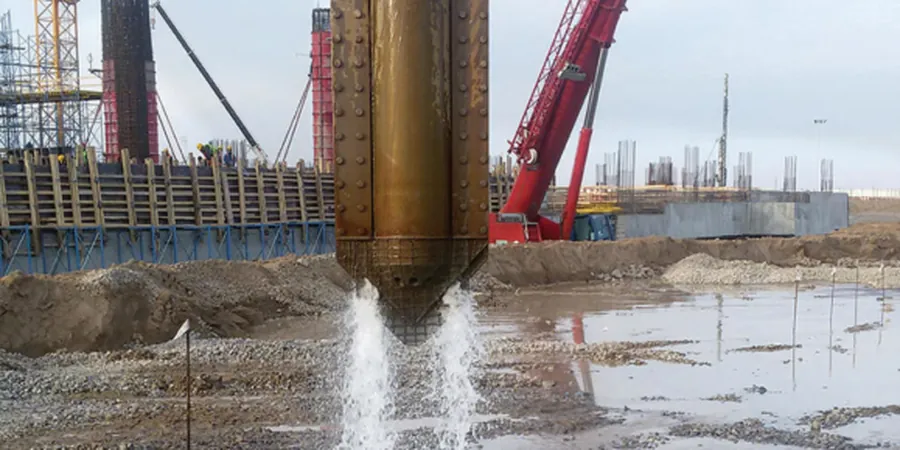

Technical reference image — Modesto
Local considerations
Summer temperatures in Modesto routinely exceed 100°F, and the Central Valley's dry air accelerates concrete curing, but that same heat dries out the granular backfill prematurely. If the stone feed loses moisture, it can bridge inside the probe tip and stall compaction. Our team adjusts the water injection rate on the fly to maintain slump. The bigger risk is encountering a buried sand seam with high fines content – fines above 20% block vibration energy transfer. Before we commit to a full vibrocompaction design in Modesto, we run a dry probe test to verify the soil responds. If it doesn't, we switch to a displacement method or combine with jet grouting to create composite ground.
For sites in Seismic Design Category D or E, we design dense stone columns to dissipate pore pressure and reduce cyclic shear strain. Our vibrocompaction design in Modesto targets a post-treatment SPT blow count (N₁)₆₀ above 30 blows/ft.
02
Settlement Control for Shallow Foundations
New warehouses and strip malls on loose sands require total settlements under 25 mm. We design the compaction grid to achieve a modulus of subgrade reaction (k-value) above 50 MN/m³.
03
Ground Improvement Verification Testing
After compaction, we run CPTu soundings and SPT borings at intermediate points. We compare pre- and post-treatment relative density profiles to confirm the design meets the specified performance criteria.
What is the typical cost range for a vibrocompaction design study in Modesto?
A complete vibrocompaction design package including field testing, laboratory work, and a final report typically costs between US$1,400 and US$5,390. The final price depends on site area, number of test points, and required depth of treatment.
How deep can vibrocompaction treat loose sands in Modesto?
Standard vibrocompaction equipment reaches 8 to 15 meters (26 to 49 feet) in clean sands. For deeper deposits, we use a heavier probe or combine with displacement methods. We always verify the target depth with pre-treatment SPT borings.
Does vibrocompaction work in soils with high fines content?
It works best when fines content passing the #200 sieve is below 15%. Between 15% and 20%, we add gravel backfill to improve vibration transfer. Above 20%, the soil is no longer clean enough for vibrocompaction alone, and we recommend stone columns or jet grouting instead.
What standards govern vibrocompaction design in Modesto?
Design follows ASCE 7-22 for seismic loads and IBC 2021 Chapter 18 for foundation performance. We reference ASTM D1586 for SPT profiling and FHWA NHI-05-037 for ground improvement quality control.
