The hot, semi-arid climate of Modesto, sitting in the heart of California's Central Valley, creates unique challenges for slope stabilization design. The region's deep alluvial soils, deposited by the Tuolumne and San Joaquin rivers, are prone to both hydro-compaction and seasonal expansion. These fine-grained silts and clays lose strength rapidly when saturated during winter rains. A solid slope stabilization design must account for this moisture-driven loss of shear strength, often requiring drainage measures before any structural solution is applied. Integrating a thorough study of soil classification helps identify the exact clay mineralogy driving the shrink-swell behavior.
Slope stabilization design in Modesto requires understanding the Central Valley's alluvial stratigraphy and seasonal moisture cycles to prevent progressive failure.
Methodology and scope
Modesto's growth from a railway depot in the 1870s into a major agricultural and logistics hub has pushed development onto former farmlands with variable subsurface conditions. The historic irrigation canals and buried drainage layers create preferential flow paths that undermine slope stability if not addressed early. A proper slope stabilization design in Modesto starts with subsurface profiling to locate these hidden channels. We combine standard penetration testing with permeability field testing to map groundwater movement, and use instrumentation monitoring when long-term deformation tracking is required. The analysis follows FHWA-NHI-05 guidelines for unsaturated soil mechanics, critical for the Valley's deep vadose zone.

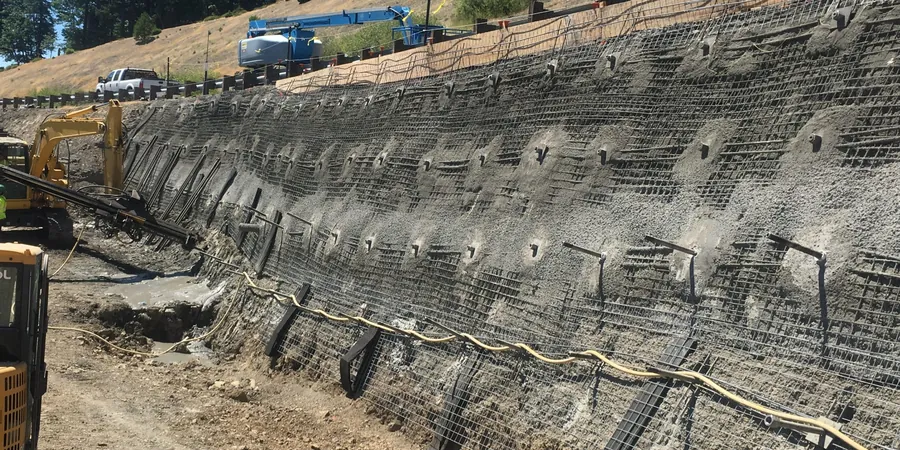

Technical reference image — Modesto
Local considerations
A typical drill rig or backhoe working on a Modesto slope faces a specific hazard: the top 5 to 10 feet of soil often consists of desiccated crust with high apparent cohesion, underlain by softer, wetter layers. This inverted strength profile can cause sudden bench collapse during excavation. The equipment's weight—often exceeding 50,000 pounds for a truck-mounted rig—can trigger local failures in the underlying soft silt. Safe slope stabilization design work here demands real-time geotechnical oversight, with an engineer monitoring each cut face for tension cracks and seepage. Pre-excavation drainage is non-negotiable after heavy rain events.
Bishop simplified, Spencer, and finite element analyses using Slide2 and Plaxis. We model the alluvial stratigraphy of Modesto with multiple groundwater scenarios, including perched water tables from irrigation. Output includes factor of safety for static and pseudo-static (seismic) conditions, plus sensitivity analysis on shear strength parameters.
02
Stabilization Solution Design & Detailing
Design of drainage blankets, horizontal drains, soldier piles, soil nails, and retaining walls. We size elements per AASHTO LRFD and IBC Chapter 18. Each design accounts for the corrosive potential of Modesto's alkaline groundwater on steel reinforcement, specifying epoxy-coated or galvanized elements when needed.
What is the typical cost range for a slope stabilization design project in Modesto?
The cost for a complete slope stabilization design in Modesto typically falls between US$1.660 and US$6.540, depending on the slope height, complexity of subsurface conditions, and whether structural elements like soil nails or soldier piles are required. This range includes field investigation, laboratory testing, analysis, and design drawings. Contact us for a project-specific estimate.
How does the shrink-swell behavior of Modesto's soils affect slope stabilization design?
Modesto's clayey silts (ML-CL) exhibit moderate to high shrink-swell potential due to the presence of montmorillonite. This seasonal volume change creates tension cracks that reduce soil cohesion and increase infiltration. Our slope stabilization design accounts for this by specifying deeper drainage layers and using reinforced soil sections that can tolerate small cyclic movements without losing structural integrity.
What is the difference between limit equilibrium and finite element methods for slope analysis?
Limit equilibrium methods (Bishop, Spencer) calculate the factor of safety along a predefined slip surface assuming rigid body behavior. Finite element methods (FEM) model the entire slope as a deformable continuum, capturing stress-strain relationships and progressive failure. For Modesto's layered alluvial soils, we often use FEM to evaluate the effect of soft lenses on failure propagation, then verify with limit equilibrium for the critical surface.
