During excavation for a six-story apartment complex near McHenry Avenue, the contractor hit a dense sand layer that stopped the auger cold. Without blow counts, the engineer would have overdesigned the foundation by 40 percent. That is why we run the Standard Penetration Test (SPT) on nearly every site in Modesto. The Central Valley's alluvial deposits vary wildly within a single block — from soft clay near Dry Creek to compacted sands closer to Highway 99. Our team uses a 140‑lb hammer dropping 30 inches to record N-values per ASTM D1586. Each test provides a continuous soil profile at 1.5‑meter intervals, giving structural engineers the data they need to size footings correctly. Before mobilizing, we cross‑reference with a capacidad de carga study to confirm the test depth matches the bearing stratum.
A single SPT boring in Modesto can reduce foundation cost by 15 percent when the design team knows the true N-values at depth.
Methodology and scope
Modesto grew fast after the railroad arrived in 1870, and the city's soil story is written in floodplain sediments. The Tuolumne River deposited layers of silty sand and lean clay, often interbedded with gravel lenses. Our SPT work here follows three principles. First, we always pre‑bore through surface fill to reach undisturbed native soil. Second, we record N-values every 0.5 meters in the critical upper 6 meters where shallow foundations sit. Third, we split the sample barrel immediately and log soil type using the Unified Soil Classification System (ASTM D2487). When a project requires deeper investigation, we combine the SPT with ensayo CPT to get continuous cone resistance profiles. The result is a complete geotechnical picture — blow counts, moisture content, and visual classification — all from one borehole.

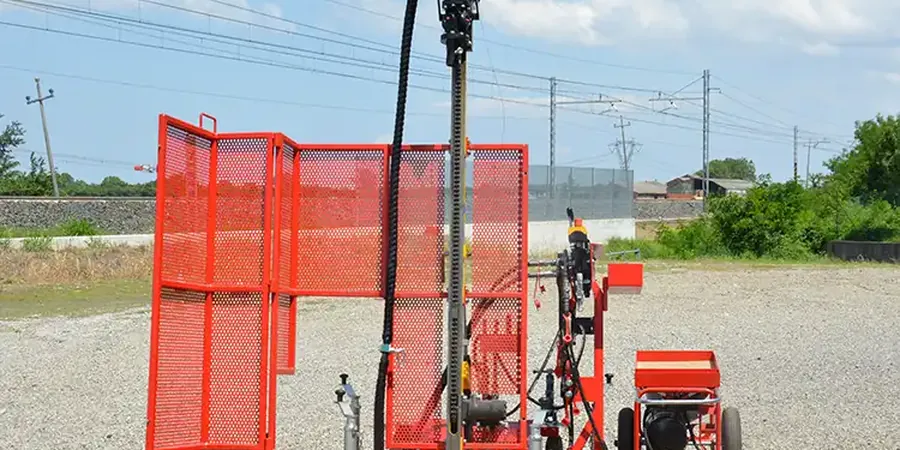

Technical reference image — Modesto
Local considerations
A common mistake we see in Modesto is relying on a single SPT boring for a large footprint. One set of blow counts near the street might show stiff clay, but 50 feet away the same layer could be loose sand. Without multiple test locations, the foundation engineer assumes uniform soil — and that assumption fails when differential settlement occurs. We always recommend at least three SPT borings for residential slabs and five or more for commercial buildings. The extra cost is minimal compared to the cost of a cracked foundation.
1.5 m (5 ft) continuous or per client specification
Penetration Resistance Range
N = 4 (very soft) to N > 50 (very dense)
Associated technical services
01
Standard SPT with Soil Sampling
Full SPT boring at 1.5-m intervals with split-spoon sampling. Includes field logging, moisture content, and visual classification. Delivered as a tabulated report with N-values and soil descriptions. Suitable for most residential and light commercial projects.
02
SPT with Laboratory Correlations
Extended service that pairs SPT blow counts with laboratory index tests: Atterberg limits, grain size, and natural moisture. Correlations for relative density, friction angle, and undrained shear strength are provided. Designed for multi-story buildings and critical infrastructure.
Applicable standards
ASTM D1586-18 Standard Test Method for SPT and Split-Barrel Sampling, ASTM D2487-17 Standard Practice for Classification of Soils for Engineering Purposes (Unified Soil Classification System), IBC 2021 Chapter 18 – Soils and Foundations, ASCE 7-22 Minimum Design Loads and Associated Criteria for Buildings
Frequently asked questions
How much does an SPT test cost in Modesto?
For a standard SPT boring to 30 feet with sampling and field logging, the cost typically ranges between US$530 and US$700. This includes mobilization within Modesto city limits, the 140-lb hammer drop test, and a basic soil classification report. Additional depth, laboratory testing, or multiple borings will adjust the total.
What is the difference between N-value and bearing capacity?
The N-value from SPT is the number of blows required to drive the sampler 12 inches. It is a measure of soil resistance to penetration, not a direct bearing capacity. Engineers use empirical correlations (e.g., Terzaghi, Meyerhof) to convert N-values into allowable bearing pressure. That conversion depends on soil type, groundwater, and foundation geometry.
Do I need SPT for a single-family home in Modesto?
For a typical slab-on-grade home on stable alluvial soil, a single SPT boring to 20 feet is usually sufficient. If the house includes a basement, retaining walls, or is located near the Tuolumne River floodplain, two or more borings are advisable. The IBC requires geotechnical investigation for any structure with a foundation depth exceeding 3 feet.
How deep should SPT borings go in Modesto?
We recommend extending SPT borings to at least 1.5 times the width of the proposed foundation, or until refusal (N > 50 blows per 6 inches). In Modesto's alluvial soils, this typically means 20 to 40 feet for a two-story building. Deeper borings are needed when soft layers are encountered or when pile foundations are planned.
