The Central Valley’s Mediterranean climate alternates between intense winter rains and long dry summers. In Modesto, that cycle creates a thick crust of desiccated clay over softer, saturated layers below. When we run an unconfined compression test (UCS) on these cohesive soils, we get a fast read on undrained shear strength — critical for shallow foundation design in residential subdivisions around the downtown grid. The test is simple: a cylindrical specimen is loaded axially with no confining pressure until failure. For the stiff clays typical of Stanislaus County, it gives us the quick answer a contractor needs before pouring footings. We always pair it with a classification of soils to confirm the material fits the expected plasticity range.
A proper UCS test on Modesto clay can save a week of foundation redesign — the undrained strength is the first number you need.
Methodology and scope
Modesto’s growth exploded after the railroad arrived in the 1870s, and the city has been building on old agricultural land ever since. Those former orchards left behind a variable near-surface profile — silty clays with occasional sand lenses. The unconfined compression test (UCS) shines here because it isolates the strength of the cohesive matrix without the complicating effects of drainage. We run it per ASTM D2166 on undisturbed tube samples, typically 2.8-inch diameter specimens trimmed to a 2:1 height ratio. The test takes under 15 minutes per sample, so a developer can get preliminary strength data the same day the cores arrive at the lab. For deeper decisions we also run an ensayo triaxial to capture drained parameters, but for quick bearing-capacity checks the UCS is hard to beat. The equipment is simple — a load frame, a proving ring, and a dial gauge — but the operator’s skill in trimming the sample matters more than the hardware.

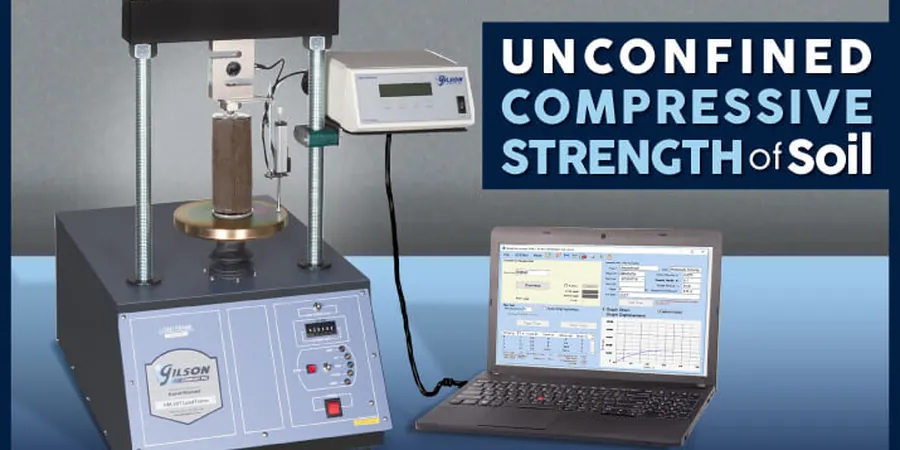

Technical reference image — Modesto
Local considerations
I remember a 10-unit apartment project near the Tuolumne River where the geotechnical report used only SPT data. The contractor started excavation and hit a wet clay seam that turned to mush under the excavator tracks. A quick unconfined compression test (UCS) on a hand-carved block sample would have caught that low-strength layer before any concrete was poured. We ended up doing emergency placa de carga tests on site to justify a redesign of the strip footings. That delay cost the owner nearly two weeks. The risk is not that the UCS test is unreliable — it is that skipping it leaves you guessing about the real undrained strength of the clay that holds up your building.
Unconfined compression test on undisturbed thin-wall tube samples (ASTM D2166). We report qu, strain at failure, and stress-strain curve. Typical turnaround is 24 hours from sample receipt.
02
Unconfined Test on Block Samples
For stiff or fissured clays where tube sampling disturbs the fabric, we can test hand-carved block samples trimmed in the lab. This preserves the natural structure better than any pushed tube.
03
UCS with Moisture Content Profile
We measure the natural moisture content before and after each UCS test, then correlate the strength drop with increasing water content. Essential for cut slopes and temporary excavations in Modesto’s variable clay layers.
Applicable standards
ASTM D2166 — Standard Test Method for Unconfined Compressive Strength of Cohesive Soil, ASTM D1587 — Standard Practice for Thin-Walled Tube Sampling of Fine-Grained Soils, IBC 2021 — Section 1806 (Presumptive Load-Bearing Values) and Chapter 17 (Geotechnical Investigations)
Frequently asked questions
How long does an unconfined compression test (UCS) take in your Modesto lab?
The mechanical test itself runs 10 to 15 minutes per specimen. With sample preparation and reporting included, you can expect results within 24 hours for standard tube samples. If you bring a block sample, add half a day for trimming.
What is the difference between a UCS test and a triaxial test?
The UCS test applies no confining pressure — it measures the undrained strength of a cohesive soil under pure axial load. A triaxial test can apply a confining stress and control drainage, giving you both drained and undrained strength parameters. For Modesto’s stiff clays, the UCS is faster and cheaper for preliminary design, while the triaxial is better for slope stability or deep foundation work.
When should I request an unconfined compression test instead of a pocket penetrometer or torvane?
The pocket penetrometer and torvane are field screening tools — quick, cheap, but low accuracy. The UCS test is a lab-grade measurement with a calibrated load frame and controlled strain rate. Use the field tools for a spot check during excavation, but rely on the UCS for final bearing-capacity calculations. The difference can be 30% or more on the same clay.
How much does a UCS test cost in Modesto?
The typical price range for a standard unconfined compression test in our Modesto lab is between US$320 and US$460 per specimen. That includes sample preparation, the test itself, and a report with the stress-strain curve. Volume discounts are available for projects with more than 10 samples.
