In Modesto, we often see pavement failures linked to the region's expansive clay soils and seasonal groundwater fluctuations. Proper road geotechnics starts with understanding the subgrade's California Bearing Ratio (CBR) and plasticity index, which directly influence thickness design. Our team integrates laboratory tests like Atterberg limits and compaction curves with field investigations, including soil classification to profile the ground. This approach prevents premature cracking and rutting common in Central Valley roads, saving clients costly repairs down the line.
Subgrade CBR values in Modesto's clay soils often drop below 5% when saturated, requiring a 12-inch aggregate base to meet design life.
Methodology and scope
A typical arterial road project in Modesto's industrial corridor requires evaluating subgrade support under saturated conditions. We conduct Dynamic Cone Penetrometer (DCP) tests at 50-meter intervals and correlate results with laboratory CBR values. For flexible pavements, we apply AASHTO 1993 design equations, while rigid pavements follow ACI guidelines. We also assess drainage conditions through infiltration tests to prevent water accumulation beneath the base layer. Key parameters we measure include:
Resilient modulus (Mr) from repeated load triaxial tests
Moisture-density relationships per ASTM D698
Swelling potential for expansive subgrades
Frost susceptibility depth (when applicable)
This data drives pavement thickness and material selection tailored to Modesto's climate.

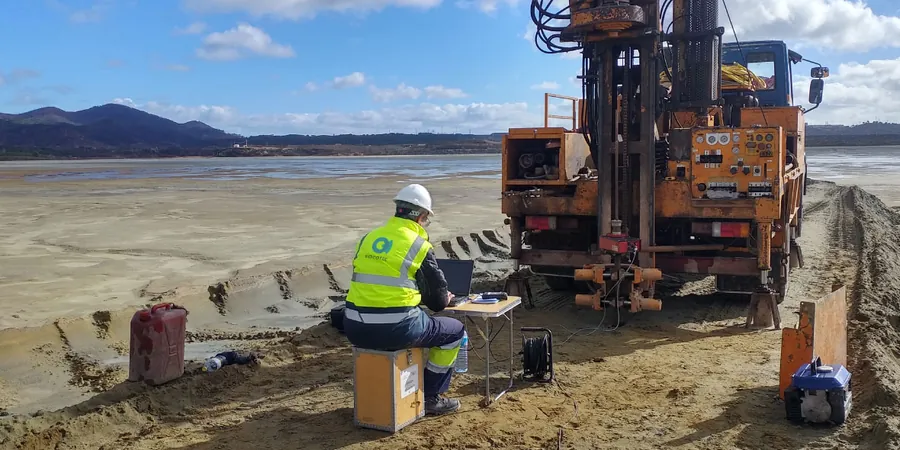

Technical reference image — Modesto
Local considerations
Modesto's urban development expanded rapidly over former agricultural land, where seasonal irrigation left legacy moisture conditions. Without proper road geotechnics, pavements suffer from differential settlement and longitudinal cracking within three to five years. The underlying San Joaquin Valley clay shrinks and swells with seasonal rainfall, creating an unstable platform for asphalt. Our pavement design accounts for these cycles by recommending lime treatment or geogrid reinforcement when subgrade PI exceeds 20. Ignoring these factors leads to frequent overlays, traffic disruptions, and escalating lifecycle costs.
What is the typical CBR value for subgrade soils in Modesto?
In Modesto, subgrade CBR values usually range from 2% to 8% for natural clays, but can drop to below 2% when saturated. These low values require thicker aggregate base layers or stabilization to meet design traffic loads.
How does road geotechnics differ from a standard soil report?
A standard soil report focuses on foundation support, while road geotechnics emphasizes subgrade strength, moisture sensitivity, and compaction characteristics. We run specific tests like CBR, resilient modulus, and swell-consolidation to design pavement thickness and drainage.
What is the cost range for a pavement subgrade investigation in Modesto?
For a typical road segment, costs range between US$750 and US$4,680 depending on length, number of borings, and lab testing. This includes field work, CBR tests, and a design report with thickness recommendations.
Do I need a geotechnical study for a residential driveway in Modesto?
For a simple driveway, a full study may not be required, but if you notice cracking or settlement in neighboring pavements, a limited subgrade investigation can identify swelling clays or poor compaction. It is a low-cost way to avoid early failure.
How long does a pavement geotechnical study take in Modesto?
A standard investigation with 3 to 5 borings, lab CBR tests, and report preparation takes 2 to 3 weeks. Larger projects with multiple test pits or resilient modulus testing may require 4 to 5 weeks for completion.
