In Modesto, many times we see embankments built on old agricultural ground that was never properly compacted. The San Joaquin Valley soil here is tricky — deep alluvium with high plasticity clay layers that shift with moisture changes. A proper road embankment design must account for that variability from the start. We combine field investigation with lab testing to define the borrow source and compaction specs. Before placing fill, we often run a densidad-cono-arena field test to verify in-situ density of the existing subgrade. That step saves time later. Modesto sits in a seismically active region too, so dynamic loading on the embankment is never ignored. We design for both static and seismic stability using local data.
Embankments on old agricultural ground require careful moisture control — Modesto's clay shrinks and swells with every rain cycle.
Methodology and scope
Modesto grew fast after the railroad arrived in the 1870s, and much of its road network was laid over former ranchland. That legacy means we deal with variable subgrade conditions — from sandy loam to stiff clay — often within the same street block. Our road embankment design methodology starts with a site-specific geotechnical investigation. We classify soils per ASTM D2487 and run Proctor compaction curves (ASTM D698) to establish optimum moisture and maximum dry density. For deeper cuts, we incorporate estabilidad-taludes analysis to verify long-term slope stability under saturated conditions. Key parameters we evaluate include:

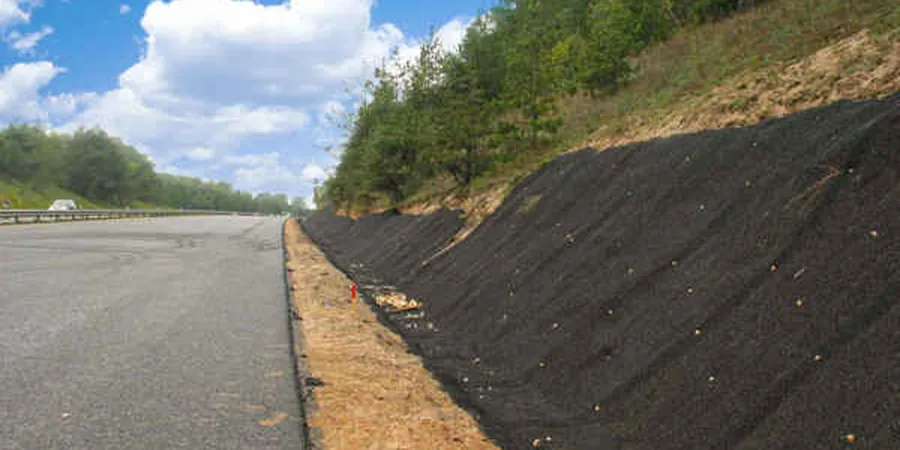

Technical reference image — Modesto
Local considerations
Compare the west side of Modesto near Highway 99 with the northeast area around Dry Creek. On the west side, you hit shallow clay with high expansion potential. Northeast, the soil transitions to sandier alluvium with better drainage but lower cohesion. A road embankment design that works in one area fails in the other if you don't adjust the fill specifications. The biggest risk is differential settlement — the embankment settles unevenly, cracking the pavement above. We mitigate that by controlling compaction lift thickness, verifying moisture content, and using geogrid reinforcement where needed.
Laboratory testing of borrow sources including Atterberg limits, grain size, Proctor compaction, and CBR. We identify the best fill material available within haul distance.
02
Slope Stability & Settlement Analysis
We model embankment slopes using limit equilibrium methods. We calculate settlement under self-weight and traffic loads. We verify factor of safety against sliding and bearing failure.
03
Construction Quality Control
Field density testing using sand cone or nuclear gauge. We monitor lift thickness, moisture content, and compaction effort. We issue daily reports with pass/fail results.
What is the typical cost range for a road embankment design study in Modesto?
For a standard roadway embankment project in Modesto, expect to invest between US$1,380 and US$3,670. This includes field investigation, lab testing, stability analysis, and a final report. The exact cost depends on the number of test pits, the volume of fill, and whether seismic analysis is required.
How deep should I excavate test pits for embankment design?
We recommend test pits at least 1.5 times the planned embankment height. For a 2 m high embankment, that means 3 m deep pits. This ensures we characterize the foundation soil that will support the fill and identify any soft layers that could cause settlement.
What compaction standard should I use for road embankments in Modesto?
For most Modesto projects, we follow Caltrans specifications which require 95% of maximum dry density per ASTM D698 (Standard Proctor). For higher traffic roads or deeper fills, we recommend Modified Proctor (ASTM D1557) to achieve 95% relative compaction. The choice depends on the pavement structural number and traffic volume.
Does seismic loading affect embankment design in Modesto?
Yes. Modesto is in Seismic Zone 4 per the IBC. We must check embankment stability under peak ground acceleration (PGA) values from the USGS seismic hazard model. We use pseudo-static analysis with a seismic coefficient of 0.15 to 0.25g depending on site class. Liquefaction of the foundation soil is also evaluated for saturated conditions near the Tuolumne River.
