Modesto sits on the deep alluvial fan of the Tuolumne River, where the water table can drop 50 feet in dry years and rise just as fast during wet winters. That seasonal fluctuation, combined with soft clays and loose sands interbedded down to 100 feet, means shallow footings often won't cut it. For mid-rise projects along McHenry Avenue or industrial facilities near the Highway 99 corridor, we typically turn to pile foundation design to transfer loads through the weaker upper strata into denser materials below. Before specifying pile type or length, we run a thorough clasificación de suelos campaign to profile the stratification and identify any perched water or organic layers that could affect shaft friction.
In Modesto's alluvial profile, pile foundation design must account for both seasonal water table rise and seismic-induced downdrag forces.
Methodology and scope
On a recent four-story apartment complex near Modesto's downtown core, we encountered a 15-foot layer of lean clay over medium-dense silty sand — a classic Central Valley profile. The geotechnical investigation included SPT borings to ASTM D1586, which gave us N-values ranging from 4 in the clay to 28 in the sand. Based on those numbers and the 45-ton column loads, we designed 16-inch driven precast piles to end bearing at 45 feet. We also cross-checked the settlement estimates using capacidad de carga analysis per IBC 2021. For sites with higher liquefaction potential near the Tuolumne River floodplain, we add licuefaccion screening to decide whether friction piles with a structural core are safer than end-bearing elements.

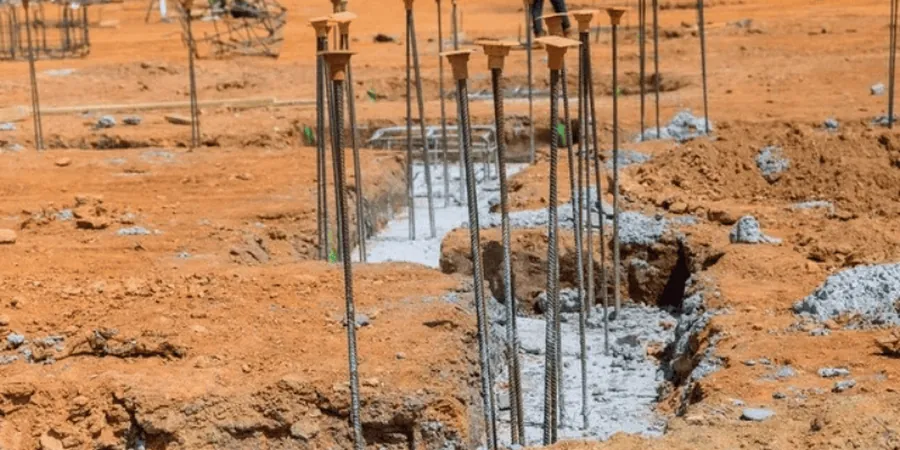

Technical reference image — Modesto
Local considerations
The biggest risk we see in Modesto is underestimating the effect of a rising water table on pile shaft resistance in the upper 20 feet. Soils that test as non-plastic silty sands in summer can become soft when saturated, reducing side friction by 30% or more. Another common issue is the presence of cemented gravel layers — locally called "hardpan" — that can stop driven piles prematurely at 20 feet, leaving the pile tip in a material that loses strength when wet. We compare both the Airport District and the Salida area to highlight how different the gravel content can be just a few miles apart.
Bearing capacity analysis using SPT correlations and static formula methods. We determine required length, tip elevation, and group efficiency for tight urban sites.
02
Augered Cast-in-Place Pile Design
For sites with high water table or sensitive adjacent structures, we design ACIP piles with continuous concrete placement to minimize soil displacement and vibration.
Applicable standards
ACI 543R-12 (Design, Manufacture, and Installation of Concrete Piles), ASTM D3966-18 (Static Axial Compressive Load Test), IBC 2021 Chapter 18 (Soils and Foundations), ASCE 7-22 (Minimum Design Loads and Seismic Criteria)
Frequently asked questions
What soil conditions in Modesto require pile foundations instead of shallow footings?
When upper soils are soft clays or loose sands with SPT N-values below 8, or when the water table is within 10 feet of grade, shallow footings risk excessive settlement. Piles transfer loads to denser strata at depth.
How does the seasonal water table affect pile design in Modesto?
A rising water table reduces effective stress in the upper soil, lowering shaft friction by up to 30%. We account for this by using drained strength parameters for the saturated zone and by specifying a minimum pile embedment below the highest recorded water level.
What is the typical cost range for pile foundation design in Modesto?
The cost for pile foundation design services in Modesto typically ranges between US$1.490 and US$6.820, depending on the number of borings, load testing requirements, and project complexity.
Do you design piles for both gravity and seismic loads?
Yes. We follow IBC 2021 and ASCE 7-22 to check axial and lateral capacity under seismic loading, including liquefaction-induced downdrag and lateral spreading effects where applicable.
