Modesto lies within the San Joaquin Valley, where alluvial deposits of silty sand and lean clay extend to depths exceeding 30 meters. Groundwater typically sits 4 to 7 meters below grade, varying seasonally with irrigation cycles. The Ménard pressuremeter test (PMT) is particularly suited here because it directly measures the in-situ stress-strain response of these interbedded soils, giving us the Menard modulus (EM) and limit pressure (pL) needed for foundation design under IBC Chapter 18. We commonly pair the PMT with a placa de carga to calibrate settlement predictions on shallow footings for warehouses and agricultural structures.
The Menard modulus from PMT directly correlates with settlement magnitude, making it essential for designing foundations on Modesto's alluvial soils.
Methodology and scope
At an elevation of 89 feet above sea level, Modesto receives about 12 inches of annual rainfall, which keeps the upper soil profile seasonally moist but rarely saturated. When we run the Ménard pressuremeter test (PMT) in these conditions, we follow ASTM D4719-20 procedures using a Menard-type probe with a 60 mm diameter. The test yields three key parameters: the reload modulus (ER), the creep pressure (pf), and the limit pressure (pL). We then apply these values to calculate bearing capacity and immediate settlement for spread footings and mat foundations. In projects near the Tuolumne River, we often combine PMT results with cimentaciones superficiales to optimize footing sizes on the dense sand layers found at 8 to 12 meters depth.

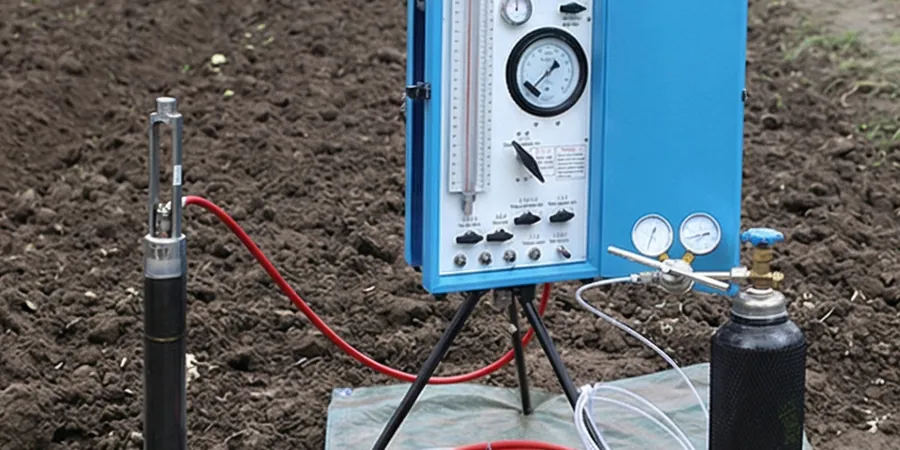

Technical reference image — Modesto
Local considerations
The pressuremeter probe is inflated by a control unit on the surface using compressed nitrogen and a volume-measuring system. In Modesto's alluvial soils, the biggest risk is borehole collapse before probe insertion, especially in the loose silty sands just below the topsoil. To mitigate this, we use a temporary casing advanced with a rotary drill rig, and we perform the test immediately after completing the borehole. A collapsed hole voids the test because the probe must expand against undisturbed soil. We also monitor drilling fluid loss closely when groundwater is shallow, as excessive loss can alter the in-situ stress state around the borehole wall.
On-site execution of Ménard pressuremeter tests at specified depths. We use a 60 mm Menard probe, automated control unit, and real-time data logging. Each test takes approximately 20 minutes per depth, including the hold cycle for creep measurement.
02
Data Interpretation & Reporting
Reduction of raw pressure-volume curves to obtain EM, pL, and pf values. We provide tabulated results with depth, graphical plots, and recommendations for bearing capacity and settlement. Reports reference ASTM D4719 and include site-specific correlation with soil boring logs.
03
PMT for Deep Foundations
We specialize in using PMT results to design drilled shafts and auger-cast piles in Modesto. The limit pressure (pL) is directly used in the Menard method to compute axial capacity. For projects near Highway 99, we cross-reference PMT data with adjacent boring records to refine pile lengths.
Applicable standards
ASTM D4719-20 — Standard Test Method for Ménard Pressuremeter Test, IBC 2021 — Section 1803.3, Geotechnical Investigations, ASCE 7-22 — Chapter 12, Seismic Site Classification (Vs30 correlation via PMT)
Frequently asked questions
How is the Ménard pressuremeter test (PMT) different from the SPT?
The SPT measures dynamic penetration resistance (N-value) and is a dynamic test, while the PMT is a static pressure-expansion test that directly measures soil modulus (EM) and limit pressure (pL). The PMT provides more accurate settlement predictions for Modesto's alluvial soils because it captures the stress-strain response under controlled loading, not just blow counts.
At what depths can you perform the PMT in Modesto?
We can run the PMT from 1 meter down to 30 meters depth, provided the borehole stays open. In Modesto's silty sands, we typically reach 15 to 20 meters without issues, using temporary casing in the upper 5 meters. For deeper tests, we pre-drill with rotary mud to stabilize the hole.
What are typical EM and pL values for soils in Modesto?
In the upper silty sands (0-8 m), EM typically ranges from 6 to 15 MPa and pL from 0.8 to 1.5 MPa. Deeper lean clay layers (8-15 m) show EM between 10 and 25 MPa and pL between 1.2 and 2.5 MPa. These values are based on our work near the Tuolumne River and downtown Modesto.
How much does a Ménard pressuremeter test cost in Modesto?
The typical cost per test depth ranges between US$1.120 and US$1.130 for a standard PMT with one holding cycle. This includes mobilization within Modesto city limits, the probe, control unit, and a preliminary data sheet. Volume discounts apply for projects requiring 6 or more test depths.
When should I use PMT instead of CPT or DMT?
Use PMT when you need direct measurement of the soil modulus for settlement analysis of shallow foundations or when designing deep foundations in layered alluvial profiles. The PMT is superior to CPT for obtaining a true modulus value, and it works better than DMT in Modesto's stiff clays where blade insertion is difficult. We recommend PMT for building projects with tight settlement tolerances.
