Modesto sits on deep alluvial deposits from the Tuolumne and San Joaquin rivers, meaning the top 30 feet are a mix of silty sands and soft clays with occasional gravel lenses. Groundwater here often sits between 8 and 15 feet below grade, so any deep excavation below that level needs a dewatering plan and a solid shoring system. A densidad cono de arena field test helps verify compaction of backfill layers during utility trench restoration, while the actual lateral earth pressures for the shoring wall are estimated using effective stress parameters from triaxial tests. The geotechnical design of deep excavations in Modesto must account for the loose, saturated sands that can lose strength rapidly under vibration or rapid drawdown conditions.
In Modesto's alluvial soils, the critical failure mode for deep excavations is often bottom heave or piping, not lateral wall collapse.
Methodology and scope
A recent 25-foot-deep excavation for a basement parking garage on McHenry Avenue required soldier piles with timber lagging because the adjacent street couldn't be closed. The design team first ran a permeability field test to estimate inflow into the excavation, which confirmed the need for a wellpoint system. Key features of the geotechnical design of deep excavations in Modesto include:
Braced or tied-back shoring to control lateral movement in soft clays
Dewatering systems designed for the seasonal water table fluctuation (up to 5 feet in wet years)
Bottom heave stability checks for excavations in the Yolo silt loam layers
These elements are integrated with the structural design so that the temporary works don't conflict with permanent foundations.

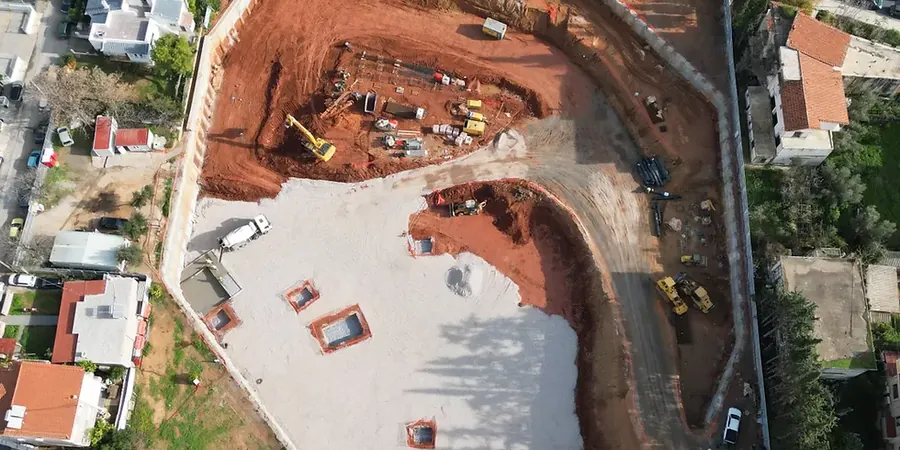

Technical reference image — Modesto
Local considerations
ASCE 7-22 requires that excavations deeper than 15 feet in Seismic Design Category D (which applies to Modesto) be checked for liquefaction-induced lateral spreading. The loose sands below the water table can lose shear strength during a seismic event, potentially causing the shoring wall to rotate or the excavation bottom to heave. We follow the IBC 2021 chapter 18 prescriptive methods for temporary excavations, but for permanent tieback anchors we also reference the Post-Tensioning Institute's recommendations for corrosion protection. The geotechnical design of deep excavations in Modesto must include a site-specific seismic hazard analysis to determine peak ground acceleration and the potential for cyclic softening of the clay layers.
Design of soldier piles, sheet piles, secant pile walls, and tieback anchor systems calibrated to Modesto's layered soils. We include deflection limits, corrosion protection for permanent anchors, and seismic checks per ASCE 7.
02
Dewatering Plan and Permitting Support
Groundwater control analysis using wellpoints, deep wells, or sump systems, depending on the excavation depth and seasonal water table. We prepare the hydrogeological report needed for Modesto's city permit approval.
Applicable standards
IBC 2021 Chapter 18 (Soils and Foundations), ASCE 7-22 (Minimum Design Loads – Seismic and Lateral Earth Pressures), ASTM D1586-18 (Standard Test Method for SPT), OSHA 29 CFR 1926 Subpart P (Excavations)
Frequently asked questions
How deep can I excavate before needing shoring in Modesto?
OSHA requires shoring for any excavation deeper than 5 feet. In Modesto's alluvial soils, we recommend shoring for any excavation exceeding 4 feet due to the risk of sloughing in the loose sand layers. For excavations deeper than 15 feet, a registered engineer must design the system per IBC 2021.
What is the typical cost range for geotechnical design of deep excavations in Modesto?
The design fee typically ranges between US$2,330 and US$8,740, depending on excavation depth, groundwater conditions, and the complexity of adjacent structures. This includes site investigation, shoring calculations, and plan review support. Final cost varies with the scope of field work and laboratory testing.
Do I need a dewatering plan even if the excavation is dry during summer?
Yes. Modesto's groundwater table can rise more than 5 feet during wet winters and early spring. Even a dry excavation in July can encounter water by October if the season is wet. A dewatering plan based on the seasonal high water table is required for permit approval and to prevent bottom heave.
