ASCE 7 and IBC set the baseline for slope stability in seismic zones, and Modesto sits in a region where deep alluvial soils amplify ground motion. These conditions demand rigorous slope failure analysis to prevent catastrophic movement during wet winters or earthquake shaking. Our approach combines limit equilibrium methods with field investigation tailored to the Central Valley's layered clay and sand sequences. Before designing cuts or fills, a proper monitoreo de taludes provides baseline deformation data that feeds directly into the stability model.
In Modesto's alluvial soils, a 1% rise in pore pressure can reduce the factor of safety by 0.15 under sustained rainfall.
Methodology and scope
Modesto's urban expansion after the 1950s pushed development onto former floodplains and reclaimed agricultural land. The topsoil is underlain by stiff Pleistocene clays and loose sands that behave differently under saturation. Slope failure analysis in Modesto must account for perched water tables that rise after heavy irrigation or storm events.
Limit equilibrium (Bishop simplified, Spencer) for circular and non-circular slip surfaces
Finite element modeling (shear strength reduction) for complex stratigraphy
Probabilistic analysis (Monte Carlo) to quantify uncertainty in soil strength parameters
We calibrate every model with local triaxial and direct shear data. A complementary estudio de mecánica de suelos confirms the stratigraphy and groundwater regime before selecting analysis method.

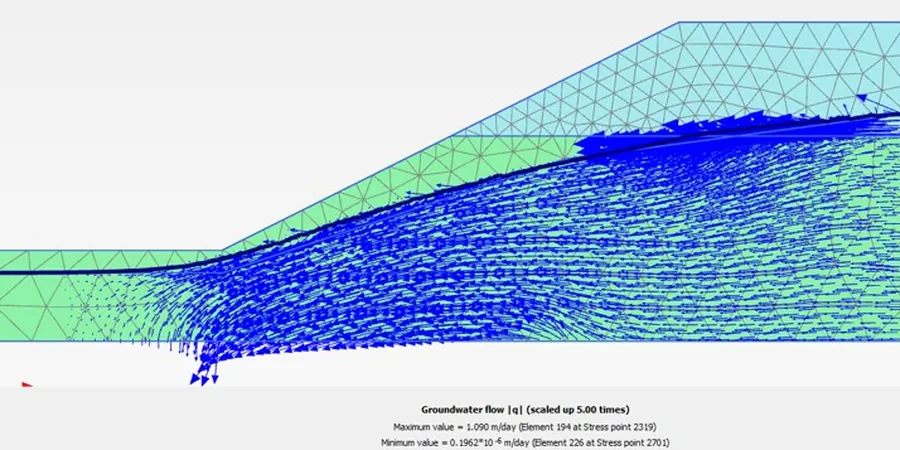

Technical reference image — Modesto
Local considerations
Modesto lies at an elevation of 89 feet above sea level, and the water table can rise to within 4 feet of the surface after wet seasons. In 2017, a series of levee breaches along the Tuolumne River triggered shallow translational slides in saturated silt layers. Slope failure analysis in Modesto must address these rapid drawdown scenarios and the softening of clay seams under cyclic loading. Without site-specific shear strength data, a factor of safety below 1.3 is common in undocumented fills.
Bishop simplified, Spencer, Morgenstern-Price, FEM (SR)
Soil strength input
c', phi' (effective stress); su (undrained)
Groundwater model
Phreatic surface from piezometers; transient seepage for storm events
Seismic coefficient
PGA = 0.36g (MCE), per ASCE 7-16 site class D
Target factor of safety
1.5 static, 1.1 pseudo-static, 1.0 for seismic deformation
Reporting standard
FHWA-NHI-05-089, USGS landslide hazard guidelines
Associated technical services
01
Limit Equilibrium Analysis
Bishop, Spencer, and Morgenstern-Price methods for circular and non-circular slip surfaces. We input strength parameters from direct shear and triaxial tests performed on undisturbed samples.
02
Finite Element Modeling
Shear strength reduction (SSR) in 2D and 3D using Plaxis and RS2. Captures progressive failure in layered profiles and strain-softening clay lenses.
03
Probabilistic Stability Assessment
Monte Carlo simulation to quantify the probability of failure. We assign distributions to cohesion, friction angle, and pore pressure based on local variability.
04
Post-Failure Deformation Analysis
Newmark sliding block method for seismic displacement estimates. Combined with liquefaction triggering evaluation for saturated sand layers near the Tuolumne River.
Applicable standards
ASCE 7-16 Section 11.8 (Seismic Slope Stability), FHWA-NHI-05-089 (Slope Stability Reference Guide), ASTM D6528-17 (Direct Shear Test of Soils under Consolidated Drained Conditions), USGS Landslide Susceptibility Mapping Protocol
Frequently asked questions
What is the typical factor of safety required for slope failure analysis in Modesto?
Modesto follows ASCE 7 and IBC guidelines. Static factor of safety is 1.5 for permanent slopes, 1.3 for temporary cuts. Pseudo-static seismic analysis requires 1.1; deformation-based acceptance criteria apply when PGA exceeds 0.3g.
How much does a slope failure analysis cost in Modesto?
The cost ranges between US$770 and US$2,240 depending on slope complexity, number of cross-sections, and whether field sampling is required. A standard single-section analysis with laboratory data falls near the lower end.
What soil conditions in Modesto most commonly trigger slope failures?
Perched water tables in layered clay-sand sequences are the primary trigger. Silt lenses lose strength rapidly under saturation, and undocumented fills from agricultural reclamation often have low compaction. Seismic loading can liquefy loose sands in the upper aquifer.
Do you include field instrumentation in the analysis?
Yes. We install standpipe piezometers and inclinometers to measure pore pressure and lateral movement. Real-time data feeds into the stability model, reducing uncertainty in the factor of safety calculation.
