Modesto sits in the heart of California’s Central Valley, where summer temperatures regularly exceed 100°F and winter rains saturate the deep alluvial soils. This extreme wet-dry cycle causes significant volume changes in the native clay layers, placing unusual demands on retaining wall design. Without proper geotechnical characterization, seasonal swelling and shrinkage can shift a wall foundation and crack the structure within months. That is why our team integrates local soil data directly into the wall design process, ensuring the final structure resists both hydrostatic pressure from saturated ground and the tensile forces from clay shrinkage. To refine the soil profile before wall design, we often combine a clasificación de suelos with in-situ moisture measurements. This upfront investigation keeps the wall stable across Modesto’s dramatic seasonal swings.
A 12-foot retaining wall in Modesto’s expansive clay can see lateral pressures 40% higher than textbook values if plasticity and drainage are ignored.
Methodology and scope
The typical Modesto profile includes a silty clay cap underlain by sandy lenses that carry shallow groundwater at depths of 10 to 20 feet. These conditions dictate two critical design parameters: active earth pressure coefficients that account for clay plasticity, and drained shear strength values for the sand layers. For a 12-foot-high retaining wall in a residential subdivision near the Tuolumne River, we measured a liquid limit of 48% and a plasticity index of 22 in the upper clay. That data pushed the design toward a reinforced cantilever wall with a granular drainage blanket. When the site also presented a soft layer at the toe, we recommended columnas de grava to improve bearing capacity before constructing the wall footing. Each retaining wall design in Modesto must also respect the California Building Code’s seismic lateral earth pressure increment, which adds a dynamic load that can exceed the static active pressure in higher seismic zones.

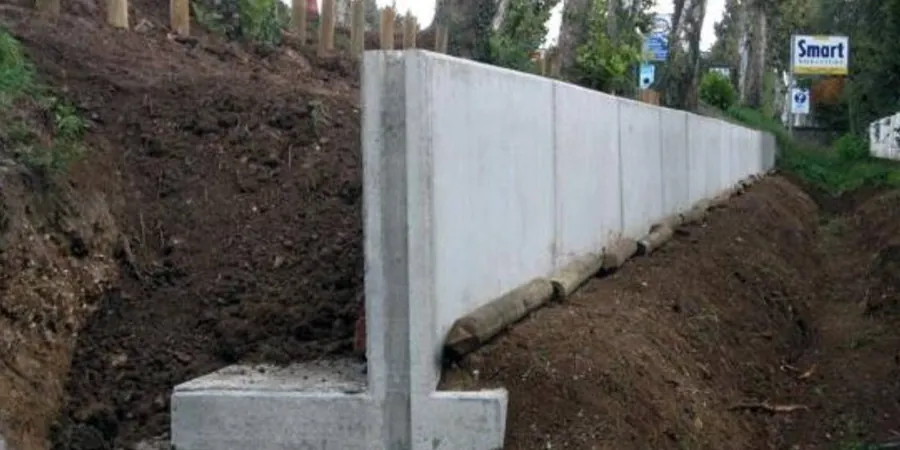

Technical reference image — Modesto
Local considerations
ASCE 7-16 classifies Modesto in Seismic Design Category D, which means retaining walls must resist a peak ground acceleration of 0.4g or more. Combine that with the region’s expansive clays, and the risk of wall failure rises sharply if the design uses generic soil parameters. A wall built without site-specific shear strength data can tilt or slide after the first heavy rain. We have documented cases where the active pressure doubled after just one wet season because the clay swelled against an undrained backfill. To avoid that, we run direct shear tests on undisturbed samples and model the wall with both short-term (undrained) and long-term (drained) conditions. Incorporating a monitoreo de excavaciones program during construction also catches unexpected soil behavior before it becomes a claim.
2,500 – 4,500 psf (typical for compacted structural fill)
Drainage requirement
Geocomposite strip drain or 12-inch gravel blanket with 4-inch perforated pipe
Factor of safety (overturning)
≥ 2.0 under static; ≥ 1.5 under seismic
Associated technical services
01
Geotechnical Investigation for Walls
Boreholes, test pits, and laboratory testing to determine soil stratigraphy, shear strength, consolidation characteristics, and groundwater depth. Delivered with a factual report and design parameters.
02
Seismic and Static Wall Design
Calculation of active, passive, and seismic earth pressures, sliding and overturning checks, bearing capacity verification, and reinforcement sizing for cast-in-place, MSE, or crib walls.
03
Drainage and Backfill Specification
Design of granular drainage blankets, geocomposite drains, and weep holes to prevent hydrostatic buildup. We also specify compaction requirements for controlled low-strength backfill.
Applicable standards
IBC 2018 (Chapter 18 – Soils and Foundations), ASCE 7-16 (Seismic Loads – Seismic Design Category D), AASHTO LRFD Bridge Design Specifications (Section 11 – Abutments and Retaining Walls), ASTM D3080 (Direct Shear Test of Soils)
Frequently asked questions
What is the typical cost range for retaining wall design in Modesto?
For a residential retaining wall up to 12 feet high, the geotechnical investigation and design package typically runs between US$1,080 and US$3,810. The final cost depends on the number of borings, laboratory tests, and the wall’s complexity, including seismic considerations.
How does Modesto’s expansive clay affect retaining wall design?
Expansive clay in Modesto can generate lateral pressures 30–50% higher than standard Rankine or Coulomb values if it becomes saturated. We account for this by testing the soil’s swelling potential and using an active pressure coefficient that reflects the clay’s plasticity index. A granular drainage blanket behind the wall is essential to keep the clay dry.
What is the difference between a cantilever retaining wall and an MSE wall?
A cantilever wall uses a reinforced concrete stem and base to resist overturning through its own weight. An MSE (mechanically stabilized earth) wall relies on soil reinforcement layers and a facing system. In Modesto, we recommend cantilever walls for heights under 15 feet in tight spaces, and MSE walls for taller fills where right-of-way allows a wider footprint.
Do I need a geotechnical report to build a retaining wall in Modesto?
