Modesto grew fast after the railroad arrived in 1870, turning ranchland into a city grid along the Tuolumne River. That alluvial legacy means we deal with interbedded sands, silts, and clays down to 20–30 meters, often with groundwater at 3–5 meters. For projects requiring underpinning or excavation support in these conditions, we design jet grouting systems that create solicrete columns of 0.6 to 2.4 meters in diameter. We combine this with a geotechnical instrumentation plan to verify column continuity in real time. The local geology demands careful wash-out control during injection, something we account for in every grouting mix design for Modesto.
For Modesto's alluvial sands at N-values below 10, jet grouting achieves unconfined strengths of 2–8 MPa with column diameters up to 2.4 meters.
Methodology and scope
We follow IBC 2021 and ASCE 7-22 for seismic loads, plus ASTM D5092 for grouting pressure monitoring. In Modesto, the shallow aquifer and the presence of the Modesto Formation — a Pleistocene alluvial deposit — make jet grouting particularly effective for improving soils with SPT N-values below 10. Our designs specify single, double, or triple-fluid systems depending on whether we target clay lenses or loose sands. We cross-check column diameter with permeability field tests to calibrate injection parameters before production starts. Each design includes:
Column layout and overlap ratio (typically 15–30%)
Grout take estimates (250–600 kg/m³ of cement)
Lift-step and rotation speed for uniform solicrete
QA/QC with wet grab sampling and unconfined compression testing

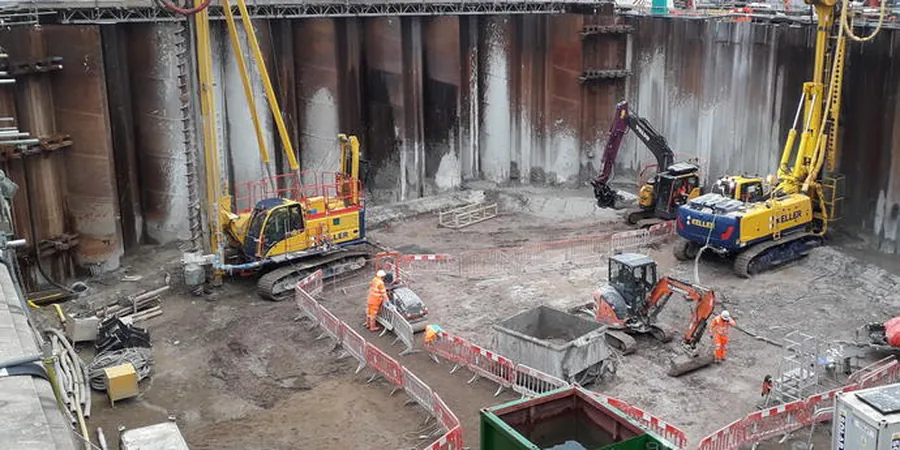

Technical reference image — Modesto
Local considerations
The triple-fluid jet grouting rig we mobilise for Modesto sites uses a monitor with three concentric nozzles — water, air, grout — operating at up to 60 MPa. That equipment is sensitive to clogging when the alluvial fines content exceeds 20%, so we pre-screen the soil profile using CPT logs. The biggest risk is hydrofracture if the return flow path gets blocked in clay interlayers. We mitigate that by staging the lift speed at 3–5 cm/s and monitoring return pressure at the casing head. Every production column gets an inclinometer casing to verify verticality within 1%.
We review existing borings, CPT logs, and groundwater data to determine if jet grouting is cost-effective for Modesto's alluvial stratigraphy.
02
Detailed Column Design and Layout
Using software like GIN or FLAC3D, we produce column spacing, diameter, and overlap plans optimised for foundation support or liquefaction mitigation.
03
Grout Mix Design and Field Trials
We formulate cement-bentonite-water mixes with retarders tailored to Modesto's groundwater chemistry, then run trial columns to verify strength and diameter.
04
Production Supervision and QA/QC
Our engineers monitor injection parameters in real time, collect wet grab samples, and coordinate unconfined compression testing at 7 and 28 days.
Applicable standards
ASTM D5092 – Standard Practice for Grouting, ASCE 7-22 – Minimum Design Loads and Associated Criteria for Buildings, IBC 2021 – International Building Code, Chapter 18 (Soils and Foundations), FHWA Grouting Manual (FHWA-HRT-17-014)
Frequently asked questions
What soil conditions in Modesto are best suited for jet grouting?
Loose sands and silty sands with SPT N-values below 10, typical of the Modesto Formation, respond well. Clay lenses need a double-fluid system with air-shrouded water jet to erode effectively before grout injection.
What is the typical column diameter achievable in Modesto alluvium?
With a triple-fluid system we achieve 1.2–2.4 m in clean sands. In silty layers the diameter drops to 0.6–1.2 m, so we adjust overlap to maintain continuity. Field trials are always recommended.
Is jet grouting effective for liquefaction mitigation in Modesto?
Yes. We design grid or tangent column layouts to densify loose sands and reduce cyclic resistance ratio requirements. Post-treatment SPT N-values typically increase to 20–30 blows per foot, which satisfies ASCE 7 seismic site class D or C criteria.
How does groundwater depth affect jet grouting design in Modesto?
Groundwater sits at 3–5 m across most of Modesto. That depth is ideal for jet grouting because the water column provides confinement, preventing blowouts and improving solicrete quality. We account for the hydrostatic head when setting withdrawal rates.
